2800-LR Adapter/Battery

H-2800-LR

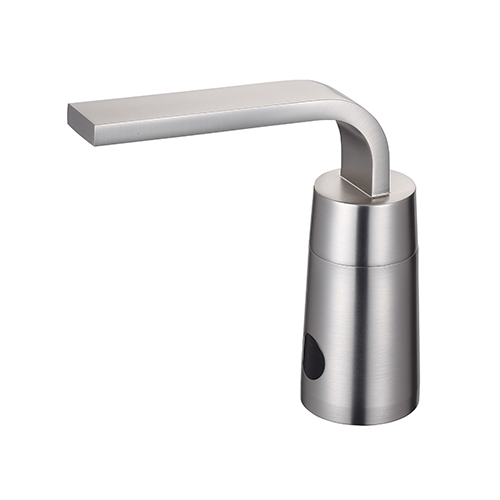

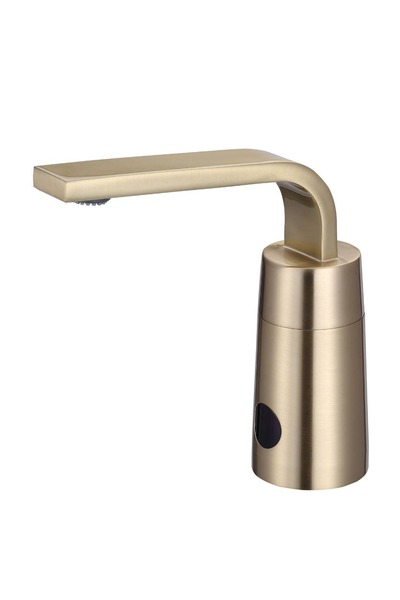

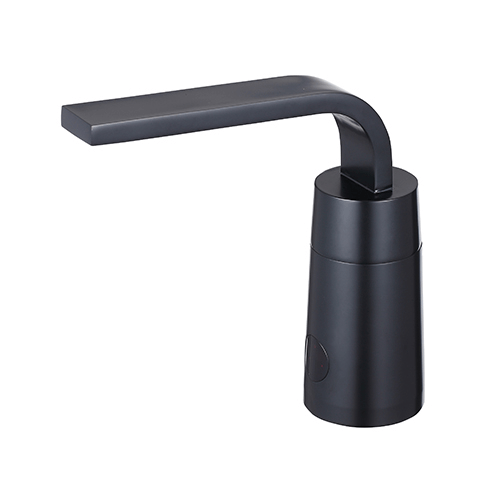

The 2800 Series Smart Commercial Faucet is a single-hole deck mounted, infrared operated electronic sensory faucet that provides a vandal resistant, Lead Free, no touch lavatory solution and promotes better hygiene and energy savings for washbasins. Designed to be easy to install and maintain, all major faucet components are encased above deck, making for easier access. The sensor included in this faucet is self adapting, meaning manual adjustments are not necessary.

Asia

Europe

America

Oceania

  • Faucet construction: solid brass, chrome plated.
  • Control Circuit - Solid State, AC or Battery, Switchable.
  • Auto. Time-Out: Preset at 20 seconds and adjustable to 10, 30, 60, 90, 1200 seconds.
  • Line purge (request only): 2 minutes run every 12 or 24 hours, 14 seconds every 8 hours.
  • Scrub Mode (request only): 30, 60, 120 seconds.
  • Sensor Range: Preset and Adjustable.
  • Shut-Off Delay: Preset and Adjustable from 0.5, 1 seconds.
  • Control Cable: Armored, Vandal Resistant.
  • Solenoid Valve: 6 V DC, Normally closed.
  • Wattage: 0.4 W (Idle), 5 W (In use).
  • Flow Control: 0.5 GPM vandal resistant.
  • Optional accessories:

  • 1. 1.6 GPM VR Soft-Flow Aerator; 0.35, 1.5 & 2.2 GPM Laminar Flow.
  • 2. 8"Center set Cover Plate.
  • 3. Mixing/Check Valve (Mechanical).
  • 4. Thermostatic Mixing Valve with Checks.
