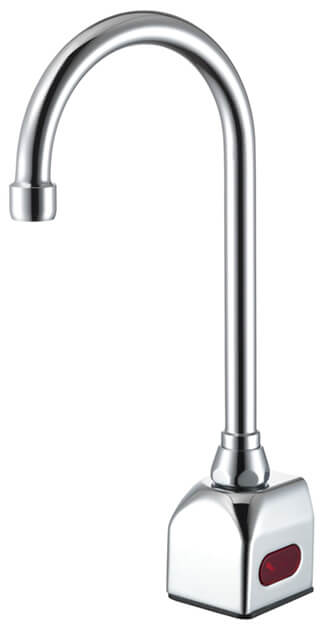

The Hydrotek #7800 Series sensor water faucet is a thermostatic faucet with auto adjusting temperature function, the designed accurate thermostatic mechanism provides required water temperature within ± 1.8 ℉(1℃) accuracy.
Out temperature EasyTHERM Button range adjustable from cold to 120℉(49℃) max., with anti scald function.
Blue/orange female connector length 160mm
Red/black male connector length 160mm
- Power Source: AC Powered, Battery Powered,
- AC Powered: Standard Plug-in: Input AC 100-240V, 60 Hz. Output 7.5VDC
Optional Multi-unit Adaptor: Serves up to 8 faucets, Input AC 100-240V, Output 7.5VDC, 3A
- Battery Powered:
Four (4) “AA” Alkaline Batteries. ---1.5 million on/off flushes (with Hydrotek Solenoid Valve)
- Standby Power Consumption: ≦35μA
- Auto-adjusting, adaptive sensor range. Two kinds of sensor range adjusting methods:
5.1 People stand in front of the sensor eye at the position who wants set up, sensor range will be adjusted.
5.2 Hand waving: Upon power source is connected, hand waving within sensor range 6cm to enter into setup mode. Hand waves once, red light flashes once, mode 1 setup.Mode 2-4 set up will be dealt with accordingly.
Modes Sensor range 1 90 cm+ 10% 2 80 cm+ 10% 3 60 cm+ 10% 4 50 cm+ 10%
- Dual flush function : Sensing time ≧60 sec. flushing high flow rate; sensing time≦60 sec. flushing low flow rate.
- 36 hours sentinel flushes once for Closet 2 sec., Urinal 1 sec.
- AC/DC powered auto switchable.
- Preset/adjustable flow rate.
- LED low battery indicator light. (Battery powered only)
- Battery service life:1.5million on/off cycles with our proprietary Enduratek energy optimization system.
Lead-free? Or low lead? No lead? They all mean the same thing.
In 1986, the U.S. Congress revised the Safe Drinking Water Act (SDWA) to use "lead-free" pipes with a lead content of no more than 8% in public water supply systems or human drinking water facility pipes.
In 2011, the U.S. Congress passed the Reduction of Lead in Drinking Water Act (RLDWA), which revised the definition of lead-free to include maximum lead content on wetted surfaces of plumbing products such as pipes, fittings, plumbing fittings, and fixtures, reducing from 8% to a weighted average of 0.25%, establishing a statutory method for calculating lead content. The Act came into effect on January 4, 2014.
The U.S. Environmental Protection Agency (EPA) lists eight third-party certifiers accredited by the American National Standards Institute (ANSI) to provide potable water piping and fittings testing and low-lead plumbing requirements for potable water systems and manufacturers. Test and mark the product. For example: Low-Lead, Low Lead Content, NSF/ANSI/CAN 372 and other labels.
Currently, brass is the main material for drinking water pipes and fittings. Lead brass has self-lubricating properties, good machinability, and corrosion resistance, wear resistance and physical/mechanical properties, and can meet various shapes of parts and part processing requirements.
When leaded brass is made into drinking water pipes and fittings, lead will be released under the action of substances in the water, and drinking leaded water will endanger human health. Medical research shows that lead has great damage to the hematopoietic function and nervous system of the human body, especially children's kidneys and other organs.
The Solenoid valve is the key component to decide what kind of batteries can be used. The opening of Solenoid valve needs a larger moment current, and AA Alkaline battery just meets this requirement, plus reasonable price, long battery life and current market mainstream these facts, therefore, AA Alkaline battery was chosen as the power source of the Automatic Faucet and Automatic Flush Valve.
If consumers purchased cheap carbon-zinc batteries which are also workable; but with less capacitance than AA Alkaline batteries, battery on/off life cycles are less than AA Alkaline battery; relatively, the more frequency of battery changing.
The Lithium battery is also workable, it’s no problem to meet the requirement of a large moment current. It has a larger capacity than AA Alkaline batteries; but the price is 4-5 times that of AA Alkaline batteries, battery on/off life cycle is more than AA Alkaline battery and the less frequency of battery changing.
There is material marking on the appearance of the battery:
- Carbon-Zinc battery: HEAVY DUTY or no marking
- ALKALINE BATTERY
- LITHIUM BATTERY
Both Alkaline battery and Carbon-Zinc battery belong to Zinc and Manganese Dioxide reacted battery type. Both batteries have the same volume, appearance and voltage; but different electrolyte. Alkaline battery is with higher energy density and more electrolyte than Carbon-Zinc battery. When these two kinds of batteries are mixed in a battery holder, the Carbon-Zinc battery will be exhausted first, and turned out to be a resistor draining Alkaline batteries. Therefore, don’t mix different materials of batteries in an Automatic Faucet.
Installing a new Alkaline battery 1.5V with 4 pcs to make 6V voltage, could last for 400,000 on/off battery life cycles. If new and old batteries mixed, for example: new battery 1.5V x 2pcs and old battery 1.2V x 2 pcs, installing 4 pcs would be 5.4 voltage, probably used only 200,000 on/off battery life cycles or less.
Therefore, new and old batteries mixed is 200,000 on/off battery life cycles less than all 4 new batteries. Suggested using all 4 brand-new, the same brands, and the same Alkaline batteries are the best when change batteries.
Don’t mix different brands of batteries.
Different brands of batteries with different conditions of the material grade, used volume and production equipment…etc. at production time, the produced voltage or inner resistor would be different from each other.
The mixed brands of batteries because of different production conditions would provide unstable quality of electricity than the same brands of batteries.
