H-1000C-LR Adapter Type HB-1000C-LR Battery Type

H-1000CLR

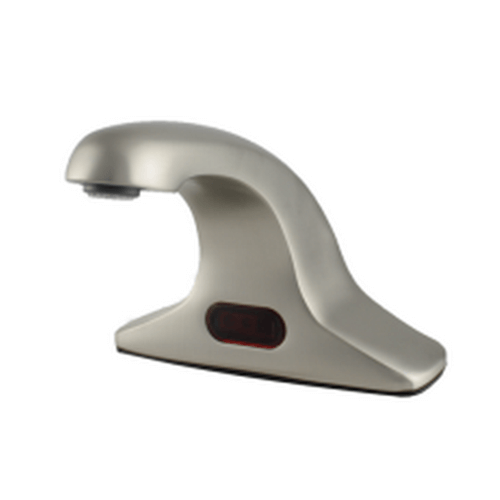

The 1000C Series faucet is a 4-inch center-set, piston operated sensory faucet that provides a vandal resistant, no touch lavatory solution that promotes better hygiene and energy savings.

Asia

Europe

America

Oceania

  • Faucet construction: solid brass, chrome plated.
  • Control Circuit - Solid State, AC or Battery, Switchable.
  • Auto. Time-Out: Preset at 20 seconds and adjustable to 10, 60, 1200 seconds.
  • Line purge (request only): 2 minutes run every 12 or 24 hours, 14 seconds every 8 hours.
  • Scrub Mode (request only): 30, 60, 120 seconds.
  • Shut-Off Delay: Preset and Adjustable from 0.5, 1 seconds.
  • Control Cable: Armored, Vandal Resistant.
  • Solenoid Valve: 6V, Normally closed.
  • Wattage: 0.4W (Idle), 5W (In use).
  • Operating Pressure: 5 Psi to 125 Psi.
  • Flow Control: 0.5 GPM vandal resistant.
  • Optional accessories:

  • 1. 1.6 GPM VR Soft-Flow Aerator; 0.35, 1.5 & 2.2 GPM Laminar Flow.
  • 2. 8"Centerset Cover Plate.
  • 3. Mixing/Check Valve (Mechanical).
  • 4. Thermostatic Mixing Valve with Checks.
